– Màn hình LCD 7″, độ phân giải 1024 x 600
– Hỗ trợ mở khóa bằng khuôn mặt, vân tay, thẻ IC, mật khẩu và mở khóa theo lịch trình
– Với khung nhận diện khuôn mặt, tự động nhận diện khuôn mặt lớn nhất trong khung hình, có thể tùy chính kích thước khuôn mặt tối đa
– Ống kính góc rộng có độ phân giải 2MP, công nghệ WDR, với đèn trắng tự động hoặc thủ công.
– Khoảng cách nhận diện 0.3m – 2.0m, chiều cao từ 0.9m – 2.4m
– Với thuật toán nhận diện mới nhất, có thể xác định lên đến 360 đặc điểm trên khuôn mặt
– Độ chính xác ≥ 99.5%, tốc độ nhận diện 0.2s
– Hỗ trợ 100.000 người dùng, 100.000 khuôn mặt, 10.000 vân tay, 100.000 thẻ, 100.000 mật khẩu, 100.000 sự kiện
– Hỗ trợ tính năng phát hiện sự sống
– Hỗ trợ cảnh báo chủ động, cảnh báo giả mạo, cảnh báo xâm nhập, cảnh báo hết thời gian tiếp xúc cửa, cảnh báo thẻ vượt ngưỡng,…
– Hỗ trợ phân chia người dùng thường, người dùng tuần tra, người dùng VIP,…
– Hỗ trợ 4 chế độ hiển thị mở khóa
– Nguồn DC 12V 2A, kích thước 250.6mm × 129.0mm × 30.5mm

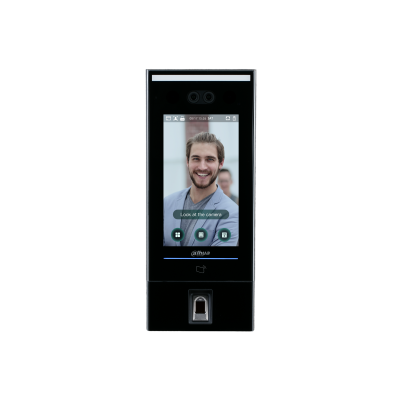

Thông số kỹ thuật Kiểm soát ra vào nhận diện khuôn mặt ASI7214X
System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor | Embedded Processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Internet Protocol | IPv4, RTSP, RTP, TCP, UDP, P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
OSDP Protocol | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF; CGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API | Support SDK | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display | 7 inch display | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Screen Type | Capacitive screen | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 600(H)×1024(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera | 1/2.8″ 2MP CMOS high definition WDR dual camera | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 120dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Light Compensation | Auto white light Auto IR light |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Status Indicator | 1 indicator light. Red: Error; Green: Normal; Blue: Working | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Voice Prompt | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Housing Material | Aluminium alloy/tempered glass/PC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Unlock Mode | Card/Remote/Fingerprint/Password/Face unlock and unlock through their cmbinations | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Reading Type | IC card | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Period List | 128 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Holiday Period | 128 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
First-Card Unlock | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Remote Verification | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Peripheral Card Reader | 1 RS-485, 1 Wiegand | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multiple Authentication | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Real-Time Surveillance | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Web Configuration | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Reading Distance | 1cm–3cm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Range | Face-camera distance: 0.3 m–2.0 m Human height: 0.9m–2.4 m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Verification Accuracy | ≥99.5% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Time | 0.2s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fingerprint Sensor Type | Capacitive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fingerprint Verification Mode | 1: N | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fingerprint Comparison Time | ≤1.5s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Capacity |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User Capacity | 100, 000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Image Capacity | 100, 000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fingerprint Capacity | 10, 000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card Capacity | 100, 000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Password Capacity | 100, 000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Capacity | 300, 000 records | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-232 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wiegand | 1 (input or output) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB | 2 USB2.0 port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet | 1 1000M Ethernet Port 1 10M/100M Ethernet Port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input | 2 (Switch quantity) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 2 (Relay) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Exit Button | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Status Detection | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lock Control | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anti-Passback | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tamper | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Duress | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Sensor Timeout | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intrusion | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illegal Card Exceeding Threshold | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Duress Fingerprint | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | Provided | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply Mode | DC 12V 2A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade | IP65 (Silicone sealant is needed. For details, see the quick start guide.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | 24W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 250.6mm×129.0mm×30.5mm(9.87″×5.08″×1.20″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions | Controller packging: 380mm×235mm×124mm (14.96″×9.25″×4.88″) Protective case: 494mm×402mm×275mm (19.45″×15.83″×10.83″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Temperature | -30°C to +50°C (-22°F to +122°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Humidity | 0%RH–90%RH (non-condensing) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Environment | Indoor and outdoor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 2.0kg (4.41 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation Method | Wall mounted | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | CE/FCC |
