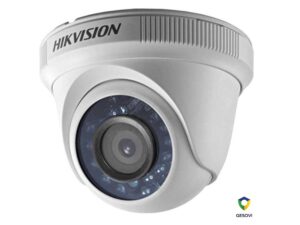

Hikvision DS-2CE56D0T-IR
Camera HD-TVI 2 megapixel
•Cảm biến CMOS 2MP
•Độ phân giải 1920×1080
•Độ nhạy sáng 0.01 lux
•Ống kính 3.6mm ( đặt hàng 2.8/6mm)
•Tầm xa hồng ngoại 20m
•Hỗ trợ DNR , menu OSD , chống ngược sáng DWDR
•Nguồn 12VDC ; Tiêu chuẩn IP66
• IRP: vỏ nhựa, IR: vỏ kim loại
Thông số kỹ thuật Hikvision DS-2CE56D0T-IR
- Camera
- Lens2.8 mm, 3.6 mm, 6 mm fixed lens
- Horizontal Field Of View103 ° (2.8 mm), 82.2 ° (3.6 mm), 54 ° (6 mm)
- Lens MountM12
- Day & NightIR cut filter
- SynchronizationInternal synchronization
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
- Image Sensor2MP CMOS Image Sensor
- Signal SystemPAL/NTSC
- Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
- Resolution1920 (H) × 1080 (V)
- Min. Illumination0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
- Shutter Time1/25( 1/30) s to 1/50,000 s
- Menu
- AGCLow/middle/high
- Day/Night ModeSmart/color/BW(Black and White)
- Backlight CompensationYes
- DWDR (Digital Wide Dynamic Range)Yes
- LanguageEnglish, Chinese
- FunctionsBrightness, Sharpness, DNR, Mirror
- Interface
- Video Output1 HD analog output
- General
- Operating Condition-20 °C to 45 °C (-4 °F to 113 °F), Humidity 90% or less (non-condensing)
- Power Supply12 VDC±15%
- Power ConsumptionMax. 4 W
- MaterialPlastic
- IR RangeUp to 20 m
- DimensionsΦ 89.5 mm × 69.8 mm(Φ 3.52″ × 2.75″)
- WeightApprox. 250 g (0.55 lb.)
