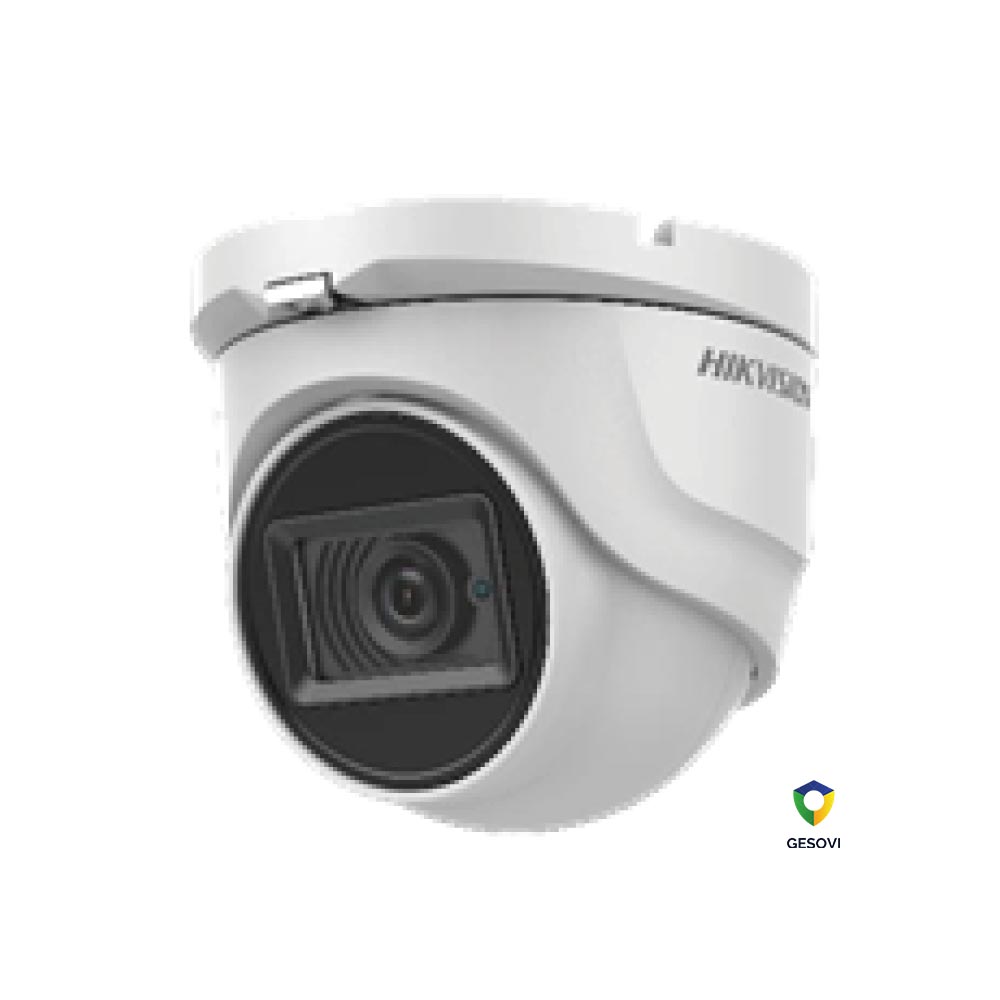

Hikvision DS-2CE76D0T-ITPFS

Camera HD-TVI 2MP – Tíc hợp micro
•Cảm biến CMOS 2MP. Độ phân giải 1920×1080. Độ nhạy sáng 0.01 lux
•Ống kính 3.6mm ( đặt hàng 2.8/6mm). Tầm xa hồng ngoại 30m , EXIR 2.0
•Hỗ trợ 2D DNR , menu OSD , HLC , chống ngược sáng DWDR
•Hỗ trợ 4 chuẩn tín hiệu TVI/AHD/CVI/CVBS , có nút chuyển
•Tích hợp micro – truyền âm thanh qua cáp đồng trục
•Nguồn 12VDC ; Tiêu chuẩn IP67

Thông số kỹ thuật Hikvision DS-2CE76D0T-ITPFS

• Camera

• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Frame RateTVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
• Resolution1920 (H) × 1080 (V)
• Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
• Lens2.8 mm, 3.6 mm, 6 mm fixed lens
• Horizontal Field Of View2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8
• Lens MountM12
• Day & NightICR
• WDR (Wide Dynamic Range)Digital WDR
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

• Menu

• Image ModeSTD/HIGH-SAT
• AGCSupport
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceAuto/Manual
• HLCYes
• BLC (Backlight Compensation)Yes
• LanguageEnglish
• FunctionsBrightness, Sharpness, Mirror, Smart IR

• Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General

• Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Power Supply12 VDC ± 25%
• Power ConsumptionMax. 2.7 W
• MaterialPlastic
• IR RangeUp to 25 m
• CommunicationHIKVISION-C
• DimensionsΦ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
• WeightApprox. 140.5 g (0.31 lb.)
