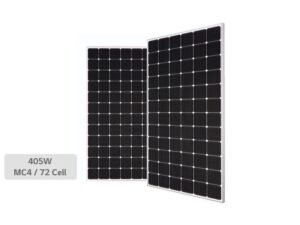

Pin năng lượng mặt trờiLG 400S1W-A5

LG 400S1W-A5
( Neon 2 – 12 Busbar)

High Efficiency LG NeON® 2 72cell Module Cells: 6 x 12 Module efficiency 19.5% Connector Type: MC4

( Neon 2 – 12 Busbar)

• CERTIFICATIONS & WARRANTY
• Certifications IEC 61215, IEC 61730-1/-2, UL 1703, IEC 61701 (Salt mist corrosion test), IEC 62716 (Ammonia corrosion test), ISO 9001
• Module Fire Performance Type 1
• Product Warranty 25 years
• Output Warranty of Pmax Linear warranty**
• Fire Rating (for CANADA) Class C (ULC/ORD C1703)
• ELECTRICAL PROPERTIES(NOCT*)
• Maximum Power(Pmax) 300
• MPP Current (Impp) 7.91
• Open Circuit Voltage (Voc) 46.2
• Short Circuit Current (Isc) 8.44
• Module 400W
• ELECTRICAL PROPERTIES (STC*)
• MPP Voltage (Vmpp) 41.0
• MPP Current (Impp) 9.89
• Open Circuit Voltage (Voc) 49.4
• Short Circuit Current (Isc) 10.51
• Module Efficiency (%) 0.195
• Operating Temperature (°C) -40 ~ +90
• Maximum System Voltage (V) 1500 (UL)
• Maximum Series Fuse Rating (A) 20
• Power Tolerance (%) 0 ~ +3
• Maximum Power (Pmax) 405
• Module 405W
• MECHANICAL PROPERTIES
• Cells 6 x 12Cell vendor LG
• Cell Type Monocrystalline / N-type
• Cell Dimensions 161.7 x 161.7 mm / 6 inches
•  of Busbar 12 (Multi Wire Busbar)

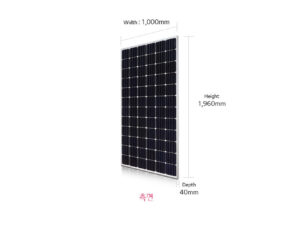

• Dimensions (L x W x H) 2024 x 1024 x 40 mm / 79.69 x 40.31 x 1.57 inch
• Front Load 5400 PaRear Load 4300Pa
• Weight 21.7 kg
• Connector Type MC4
• Junction Box IP68 with 3 Bypass Diodes
• Frame Anodized aluminum
• Glass Tempered Glass with AR Coating
• Cables 1200 mm x 2 ea
• TEMPERATURE CHARACTERISTICS
• NOCT 45 ± 3 °CPmpp -0.36%/°C
• Voc -0.26%/°CIsc (-) 0.02%
